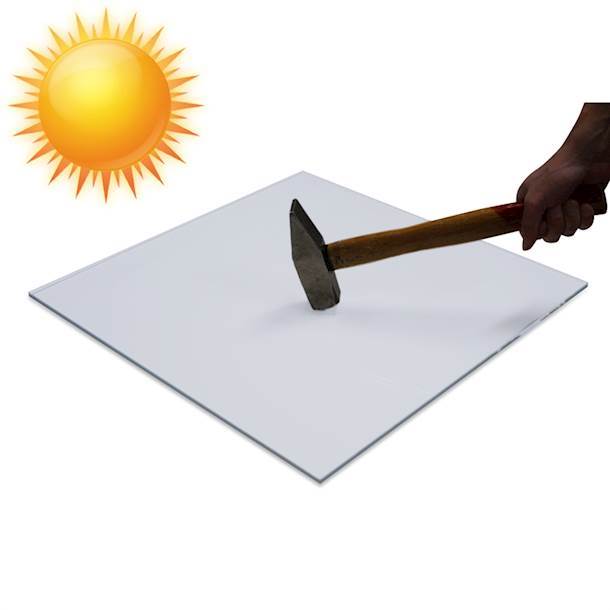

Opal polycarbonate sheet withstands hammer blows without cracking under an illustrated sun
Opal white plastic sheet placed in a small white holder on a light surfaceOpal white plastic sheet diffusing light to create a diffuse, glowing circle in the middle of the sheetOpal white plastic sheet with visible edge and semi-transparent surface against dark backgroundWhite plastic sheet held diagonally by two hands against dark grey backgroundPlastic sheets in opal, black and white shown as product samples on a light background
Opal Polycarbonate UV is an extremely impact-resistant and weather-resistant plastic sheet with 30% light transmission, making it ideal for diffuse light distribution. The sheet is UV-protected on both sides, does not shatter like glass and is perfect for both indoor and outdoor screening.

Opal Polycarbonate UV

Pris ekskl. moms
Materiale tykkelse
Dimension
M2/Længde
Vægt pr. stk.
Ekstra
Leverandørinformation
  • GBP / pcsincl. VAT
Ships within: 5-7 Working days
+-
pcs
  • Description
  • Information
  • Specifications

Description

Opal Polycarbonate UV is a milky white, semi-transparent plastic sheet that combines extreme impact strength with optimal light diffusion. With a light transmission of 30%, it is particularly suitable for breaking direct light from light sources and creating diffuse, pleasant illumination without glare.

The sheet's built-in UV filter on both sides makes it highly weather-resistant, ensuring it retains its colour and strength outdoors for many years without yellowing. It is ideal for applications such as machine guards, safety glazing, indoor signs, impact-resistant secondary glazing, as well as light strips in greenhouses and roof lights where safety is a top priority.

Whether you need to guard a machine in industry or create modern, durable lighting in your next construction project, you get a durable, high-quality sheet.

Information

  • Extreme impact strength: Highly impact-resistant sheet that does not shatter like glass
  • Excellent weather resistance: UV-protected on both sides, preventing yellowing and colour changes in sunlight
  • Diffuse light distribution: 30% light transmission is ideal for diffusing light and creating even illumination
  • Easy processing: Easy to cut with fine-toothed saws, drill and mill with minimal risk of cracking
  • Fire rating: Euroclass B-s2,d0 (EN 13501-1)

Technical specifications

Density1.20 g/cm³
Water absorption0.30%
Modulus of elasticity (tensile)2,350 MPa
Yield stress>60 MPa
Elongation at break120%
Charpy impact strength (notched)80 kJ/m²
Charpy impact strength (unnotched)No break
Vicat softening temperature148 °C
Heat deflection temperature (1.8 MPa)128 °C
Heat deflection temperature (0.45 MPa)140 °C
Coefficient of linear thermal expansion0.65·10⁻⁴/K
Light transmission30%

Material properties

Material typePolycarbonate (PC)
Impact strengthExtremely high impact resistance (does not shatter like glass)
UV protectionIntegrated UV protection on both sides
Weather resistanceExcellent weather resistance with a 10-year manufacturer guarantee
FormabilityThermoformable (requires pre-drying) and cold-bendable
Fire ratingEuroclass B-s2,d0 (EN 13501-1)
Chemical resistanceGood against dilute acids; sensitive to alkalis, amines and certain solvents

Processing

Polycarbonate is a very versatile material to work with, as it is extremely tough, so there is minimal risk of it breaking or splitting during processing.

  • Sawing: Easily cut with a fine-toothed circular saw, jigsaw or standard handsaw.
  • Drilling and milling: Can be drilled and milled using standard tools with minimal risk of the sheet cracking or shattering.
  • Cold bending: The sheet can be cold-bent with a minimum radius of typically 150 times the sheet thickness.
  • Thermoforming: Suitable for thermoforming, but requires pre-drying as polycarbonate absorbs moisture from the air.
  • Joining: Can easily be joined or mounted using a PC-suitable adhesive.

Questions and Answers

How much light passes through an opal polycarbonate sheet?

Opal Polycarbonate UV has a light transmission of 30% (measured on a 3 mm sheet), providing effective light attenuation and even, diffuse light distribution without glare.

Does the sheet yellow when used outdoors in the sun?

No, this sheet features integrated UV protection on both sides, which protects against solar radiation and ensures the sheet does not yellow or change colour. It comes with a 10-year manufacturer guarantee on weather resistance.

Can you cut opal polycarbonate yourself?

Yes, polycarbonate is very easy to work with. You can easily cut the sheet with a fine-toothed circular saw, jigsaw or standard handsaw with minimal risk of the material cracking or shattering.

Can opal polycarbonate shatter like glass?

No, polycarbonate is known as one of the most impact-resistant plastics on the market. It has extremely high breaking strength and does not shatter like glass, making it ideal for safety glazing and protective shielding.
